Toyota Supra 2JZ-GTE BOOST LEAK TESTER

$65.00

(No reviews yet) Write a Review

Shipping:: Free Shipping

Current Stock:

Quantity:

Adding to cart… category.add_cart_announcement

Overview
Reviews

Product Description

Toyota Supra 2JZ-GTE 1993–2002

For single turbo upgrade

Get your boost back!

This boost leak tester is designed to fit over the inlet flange of your turbo charger and allows you to pressurize the turbo and charge system with compressed air while the vehicle is off.

This is an important tool that every turbo car owner needs in their arsenal of tools. It is going to keep the turbo healthy by eliminating leaks in the boost path and not allowing it to over speed compensating for a boost leak. It is a must if you are tuned and or going to get a custom tune, or any time you are replacing any components in the intake tract such as charge hoses, intercooler, manifold, vacuum lines, injectors…etc. Also a must if you are going to the track and want the peace of mind that everything is tight and capable of handling sustained boost without blowing any hoses off

Importance of the boost Gauge?

Not having a gauge readout on a boost leak test is similar to filling air in your car's tire without a gauge. You just don't know how much air is in the system!

It is very wise to know how much pressure is actually going into the charge system to prevent damage to your engine and to yourself - Example if the compressor is unregulated (using high pressure shop air at 90 PSI) there is a risk that the charge pipes will be over-pressurized and something will give - the boost leak tester could blow off or any component of the engine could.

Simple Steps to Use the Boost Leak Tester:

Remove the intake hose/pipe off your turbo chargers inlet

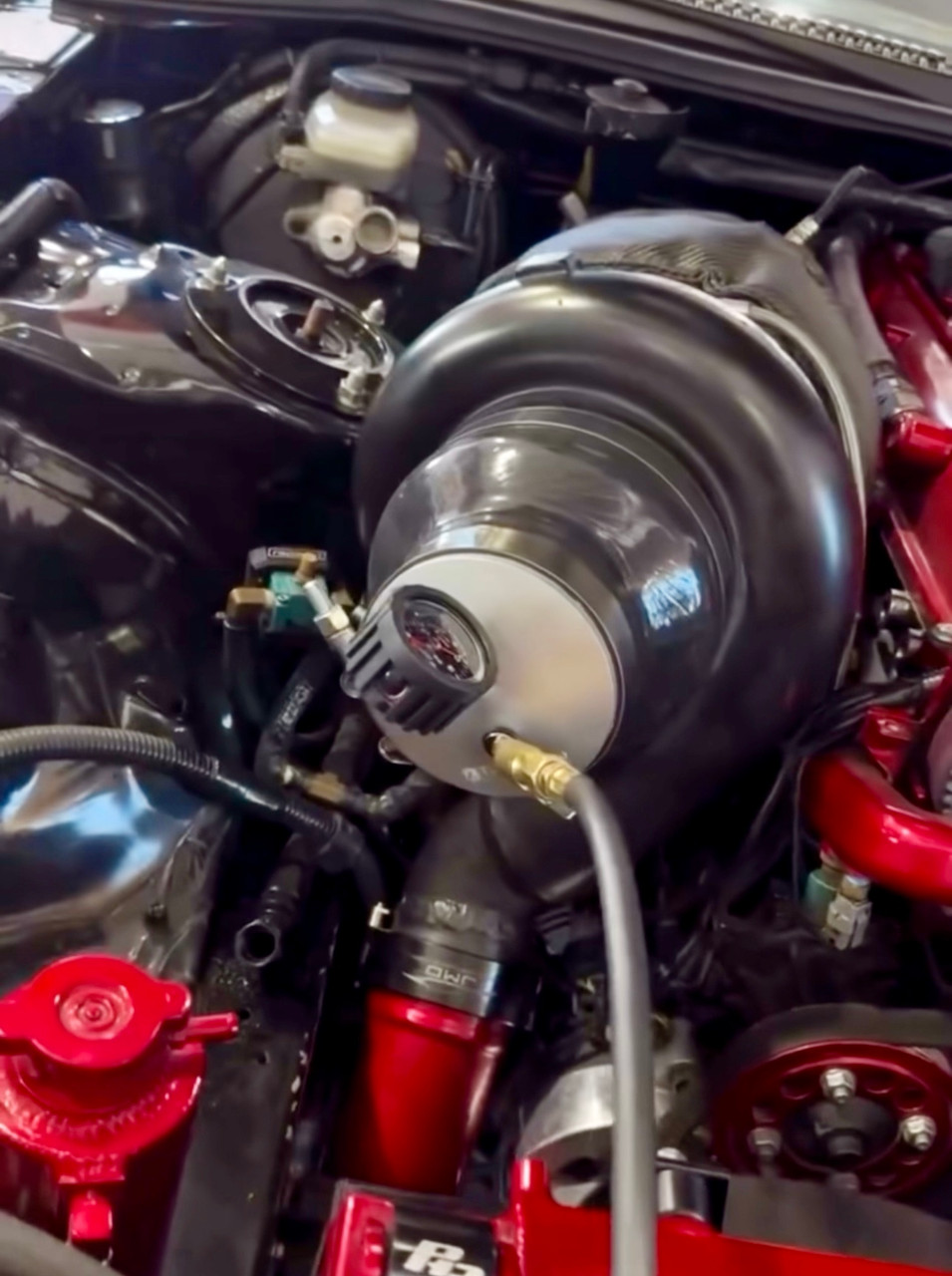

Install the boost leak tester onto the turbo chargers inlet and secure with the T-bolt clamps
Pressurize the boost leak tester with an air compressor and a tire inflation tool. The air compressor should be a minimum of 2 gallon volume. The larger the compressor, the more capacity you have to fill the engines charge pipes. A bike pump or electric pump will not supply enough air fast enough to fill the system
*Caution! - When filling the system, start with a low pressure around 5 PSI. Recommended to regulate the compressor to a lower pressure and only increase if filling is too slow. The boost gauge reading indicates how much compressed air is in the charge pipes. The boost gauge allows you to read the bleed rate of charge pipes when you remove the pressure. It is normal to see pressure loss average of 1psi every second. Faster bleed rate at higher pressures and slower bleed rate at lower pressures
Listen for leaks. Use soapy spray if necessary to identify smaller leaks.
Fix any leaks points and then retest. Increase by 5 PSI up to the normal operating boost pressure.
Go out and Boost! Enjoy the restored power from your engine!

The gauge on the boost leak tester allows the user to:

apply a safe amount of pressure to prevent injury or damage to the charge pipes or engine
read how fast the system holds and bleeds air after removing the air source
give a good comparison of compressor outlet air Vs. boost test air while pressurizing. The smaller the difference the lesser the air loss in the system

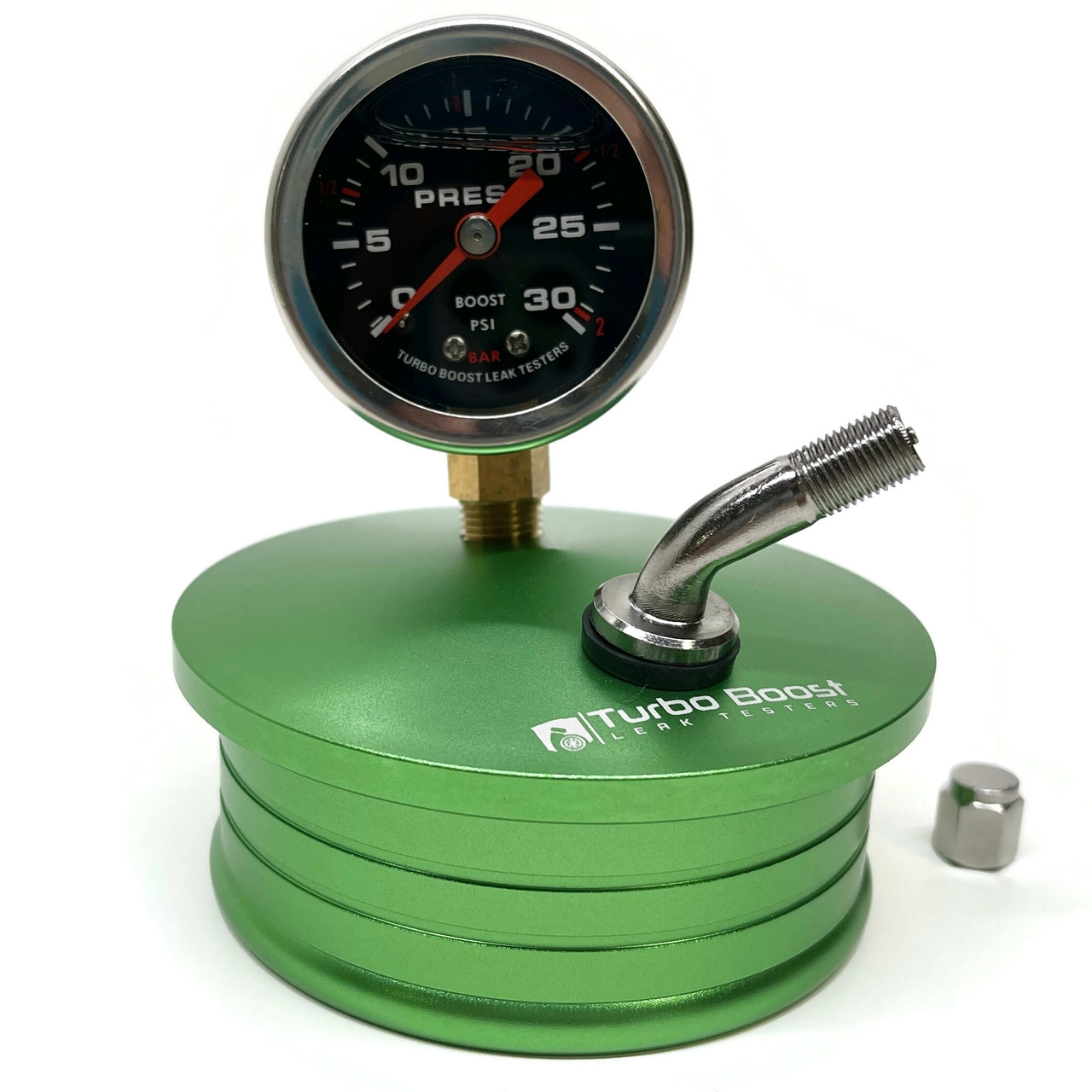

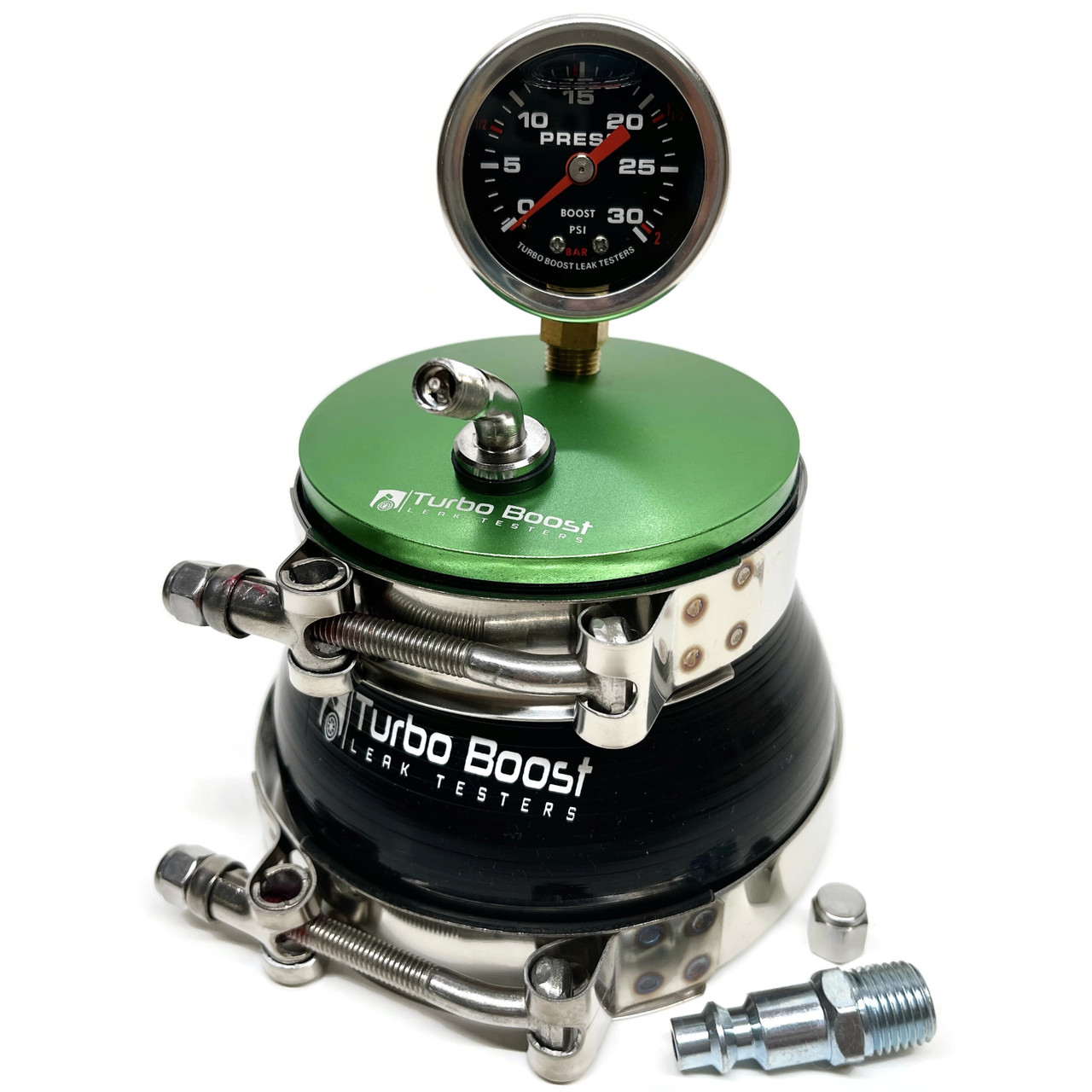

Design Features:

Billet 6061 Aluminum End Cap 3" OD (FOR LARGER SIZE KITS- 4" End Cap) with 1/8" NPT threaded gauge port & fitting port
High quality silicon coupler
Custom Stainless Steel 30 PSI / 2 Bar Boost Gauge (15psi For Larger Size kits)
30 PSI range will give you the appropriate reading when testing your charge pipes for low, medium or high boost levels.

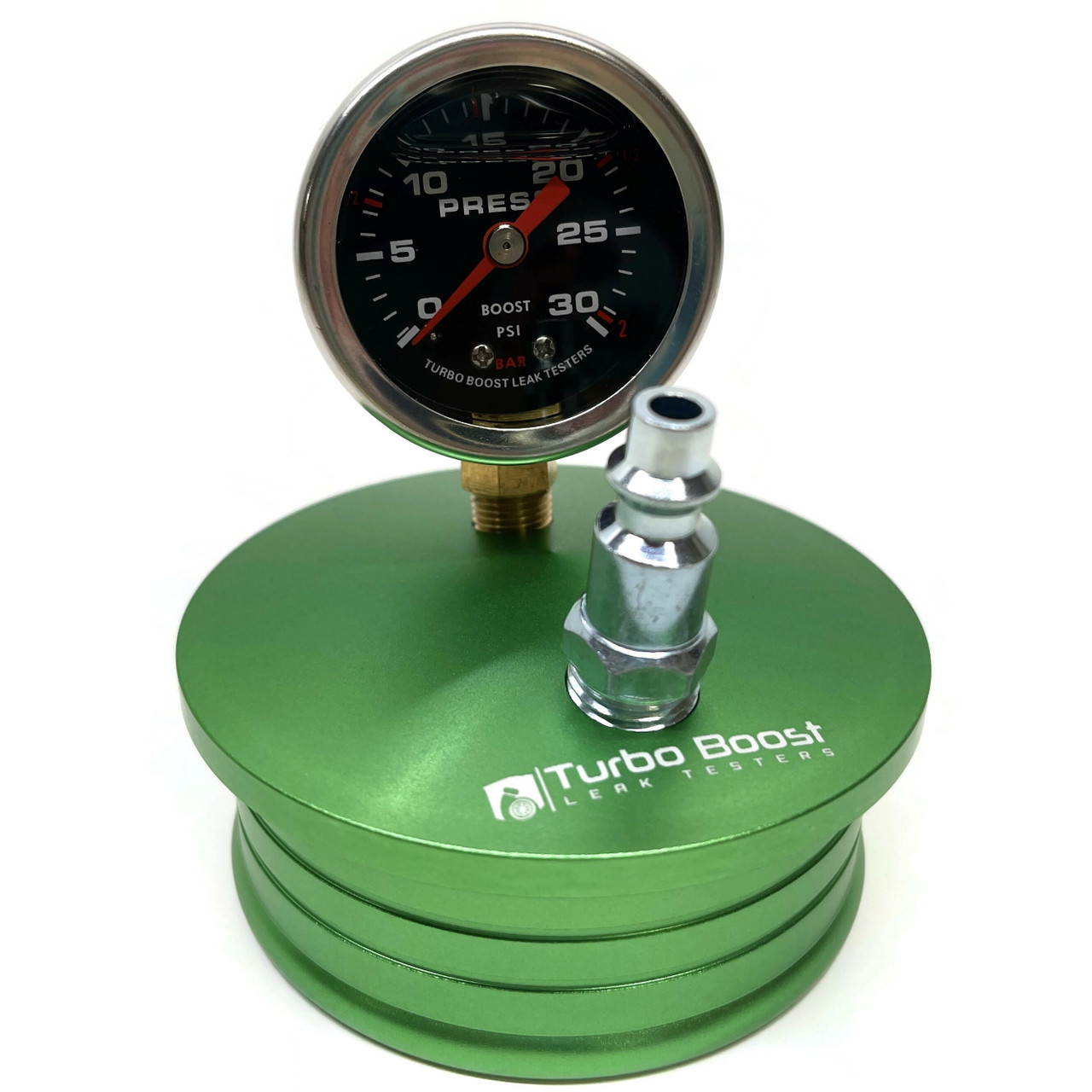

Universal Tire Schrader Valve OR Compressor fitting with purchase of extension hose kit
(2) Stainless Steel T-Bolt Clamps with Teflon lock-nut

------------------------------------------------------

Lifetime warranty on all components!
