INSTRUCTIONS FOR L5P Duramax 6.6L 30 PSI Boost Leak Tester Kit

Duramax 6.6L 30 PSI L5P Boost Leak Tester Kit

Engineered and tested in the USA!

Thank you for your purchase!

If you have any questions about this product feel free to reach out to Turbo Boost Leak Testers directly at support@turboboostleaktesters.com or call/text any time at 248-403-8512

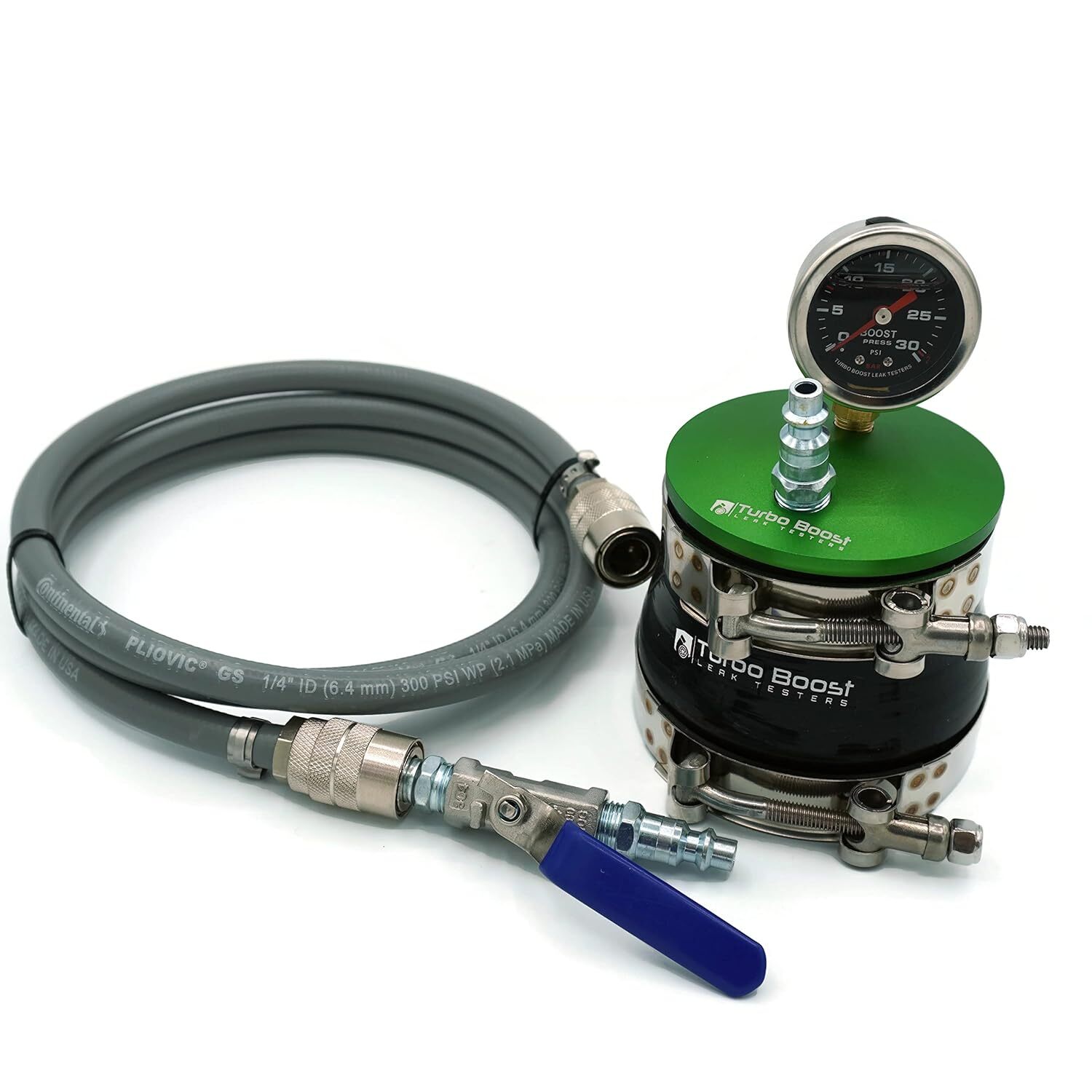

Package Contents:

(1) 3” Billet CNC machined aluminum end cap with ¼” NPT Air fitting and tire valve fitting

End cap features an anti-slip bead and machined grooves for grip high pressure testing. Includes a 30 PSI pressure gauge

(1) 3” to 4” silicone hose adapter for turbo inlet
(1) 5 ft Extension hose with shut off ball valve and quick release connection to boost leak tester
(1) Teflon Tape for assembly
(1) 22mm PCV rubber cap for turbo inlet pipe

This Boost Leak Tester is designed to work on:

Duramax LP5 Engine 2017+
Chevy Silverado, GMC Sierra 2500HD 3500HD, Express, Savana, Topkick, Kodiak

Using this tester kit:

This tester will install on the turbocharger inlet pipe and allow you to pressurize ALL the components of the charge pipe system that the turbo NORMALLY pressurizes. This allows you to listen for leaks at any point in the boost path.

Preparation:

Remove the intake pipe between the airbox and turbo inlet pipe. Install tester on the inlet pipe leading to the turbo. NOTE: The inlet pipe has a PCV return line connected to it just before the turbo, this connection needs to be capped off (with included cap) and avoid pressurizing the PCV system. The PCV system is not designed to see a large positive pressure such as when doing a boost leak test.

Clamp the tester on the pipe, and use your air compressor to test up to 30 PSI and detect any leaks in the WHOLE charge pipe path the turbo NORMALLY pressurizes while boosting- including the hot & cold pipes, intercooler CAC, Y-bridge, EGR, and all clamped connections with no need to cap off the other end. You will be able to listen for any leaks.

The 5 ft extension hose makes it easy to control pressure without leaning over the engine bay.

Q&A: “I cant build pressure OR the gauge reads 0 PSI”

Check the EGR valve, there is a very good chance it is not closing completely, dumping all the test pressure into the exhaust.
Check to make sure the PCV cap was installed. You may be loosing all pressure through the PCV system instead of the boost system

Tips during testing:

Always wear safety glasses and face protection. Stand clear from the tester when under pressure as it or any other component may blow off during pressurization.
Start with a low pressure on your compressor and work your way up. The largest leaks will be found first, fix them and retest to find the next smaller leak.
A good starting pressure is 10 PSI and work up to 20 PSI or 30 PSI, or what you normally boost when driving.
If your system is filling too slowly, increase the pressure on your compressor outlet, but be cautious not to over pressurize the charge pipes. The boost gauge on the tester will indicate what the charge pipe pressure is.
Soapy spray can be used to identify very small leaks.
If the system is not filling at all, then there is a leak large enough or something is disconnected.
NO - you do not need to cap off the other end. The charge pipes and engine will hold the pressure and pressure will not escape through the engine into the exhaust.

After fixing all obvious leaks, use the shut off valve and keep the pressure trapped in the system to evaluate how well the system holds. About 1 psi for every second or two is normal. At higher pressure, example, 20PSI it will drop faster then start to slow down as the pressure falls to 0psi.

Purge all the air first before removing the tester

Now enjoy making boost with confidence!
