Universal Turbo Boost Leak Tester Shop Kit 2" to 4" - Billet 6061 Aluminum - with 5 Ft Extension Hose & 150 PSI Regulator

Get your boost back!

This complete shop kit will give you the flexibility to test almost any make and model vehicle with stock and aftermarket turbos from 2 inch up to 4 inch in every 1/4" increment, and now includes the 5 ft extension hose kit with shut-off valve and 150 PSI air regulator for precise control over your shop air.

These are designed to be installed directly on to the turbo's compressor inlet flange, but the end caps can also be used to slip into flexible hoses (with 2" and 3" inner diameter).

This is an important tool that every turbo car or truck owner needs in their arsenal of tools. It is going to keep the turbo healthy by eliminating leaks in the boost path. It is a must if you are tuned or going to get a custom tune, or you are replacing any components in the intake tract such as charge hoses, intercooler, manifold, vacuum lines, injectors...etc. Also a must if you are going to the track and want the peace of mind that everything is tight and capable of handling sustained boost without blowing any hoses off.

Why add the extension hose kit with regulator?

This will allow you to have precise control over the pressure entering into your turbo system. Almost mandatory for use in any shop environment where the preset shop air is too high for a boost leak test and needs to be regulated down.

The 5 ft extension hose allows you to stand free and clear from the tester (in case it pops off) and allows you to comfortably regulate the pressure as needed. The ball valve lets you turn the pressure into the system on and off - this can be very important for you to check the decay or bleed rate after filling the system with pressure. The bleed rate lets you know how well the system holds, and this can only be done by cutting off the pressure to the tester.

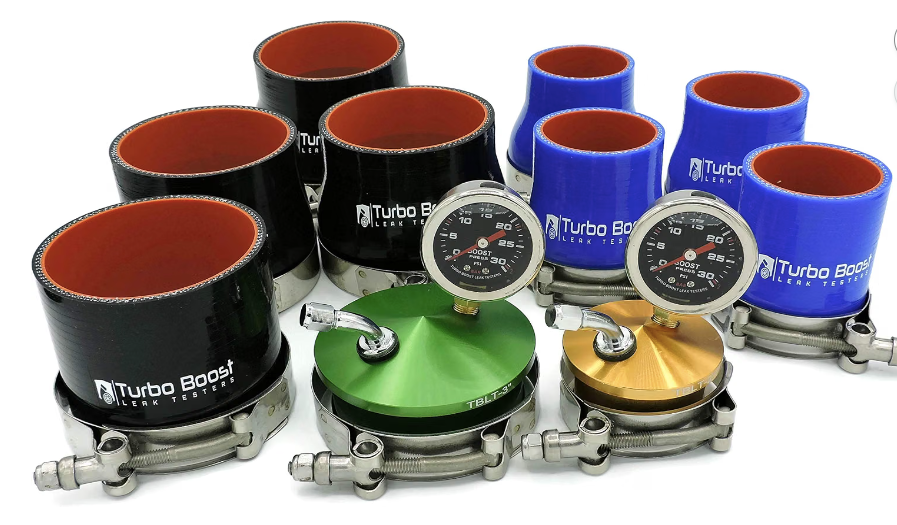

Design Features & What's Included:

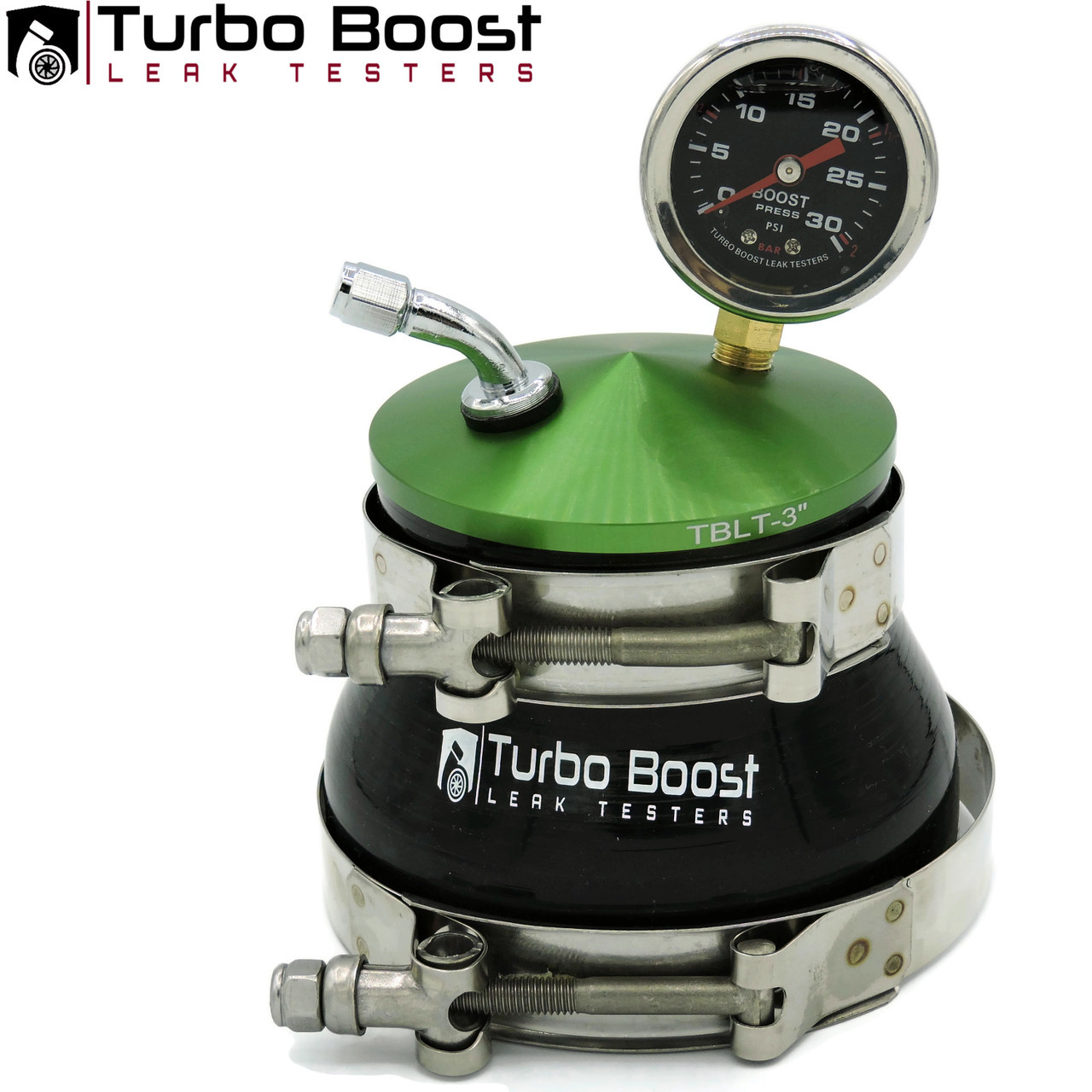

• (2) Billet 6061 Aluminum End Caps (one 2" and one 3" OD) with 1/8" NPT threaded gauge port & 1/4" NPT tapped fitting port
• Silicone coupler adapters to allow you to test 2", 2.25", 2.5", 2.75", 3", 3.25", 3.5" and 4"
• Custom Stainless Steel gauges 30 PSI / 2 Bar - most leaks will be discovered under 15 PSI of compressor pressure
• Universal Tire Schrader Valve and 1/4" NPT Compressor fittings
• Stainless Steel T-bolt Clamps for each size, with a Teflon lock-nut to clamp to every size
• (1) 5 ft. Continental extension hose with stainless on/off valve for easy control - All 1/4" NPT Fittings M-Type
• (1) 150 PSI Air Regulator for added safety and control for shop air - aluminum housing
• Self purging regulator when turning the pressure down
• Stainless steel ball valve housing

Lifetime warranty on silicone couplers, boost gauges, end caps and fittings.
