Honda Big Turbo Boost Leak Tester Shop Kit 4" 5" 5.5" 6" - Large Frame Turbos - Billet Aluminum

GET YOUR BOOST BACK!

Test your Honda turbo setup at the turbo inlet and find leaks fast. Most builds are losing power and don’t even know it. It just doesn't feel as fast as it used to — fix the leak and feel the boost hit like it should.

Find Leaks in Minutes

Checks your entire system with your engine off:

• Charge piping
• Intercooler
• Couplers & clamps
• Intake manifold
• sensor bungs
• injector seals
•  throttle body and gaskets
•  blow off valve
•  wastegate
• vacuum lines & PCV

All the common leak points on boosted Honda builds.

Smoke testing is not sufficient as it only tests low pressure 1psi.

Why It Matters

Boost leaks =

• Weak pull
• Slow spool
• Lost MPG
• Turbo working overtime

Left alone → blown couplers, shaft play, or worse… turbo failure.

Test it. Most failures start with a leak.

Add an extension line kit to make the testing easier, less reaching and allows fine control for consistent pressure management, making it an easy one-man test.

Fitment

Fits 3"–4" turbo inlet / intake piping

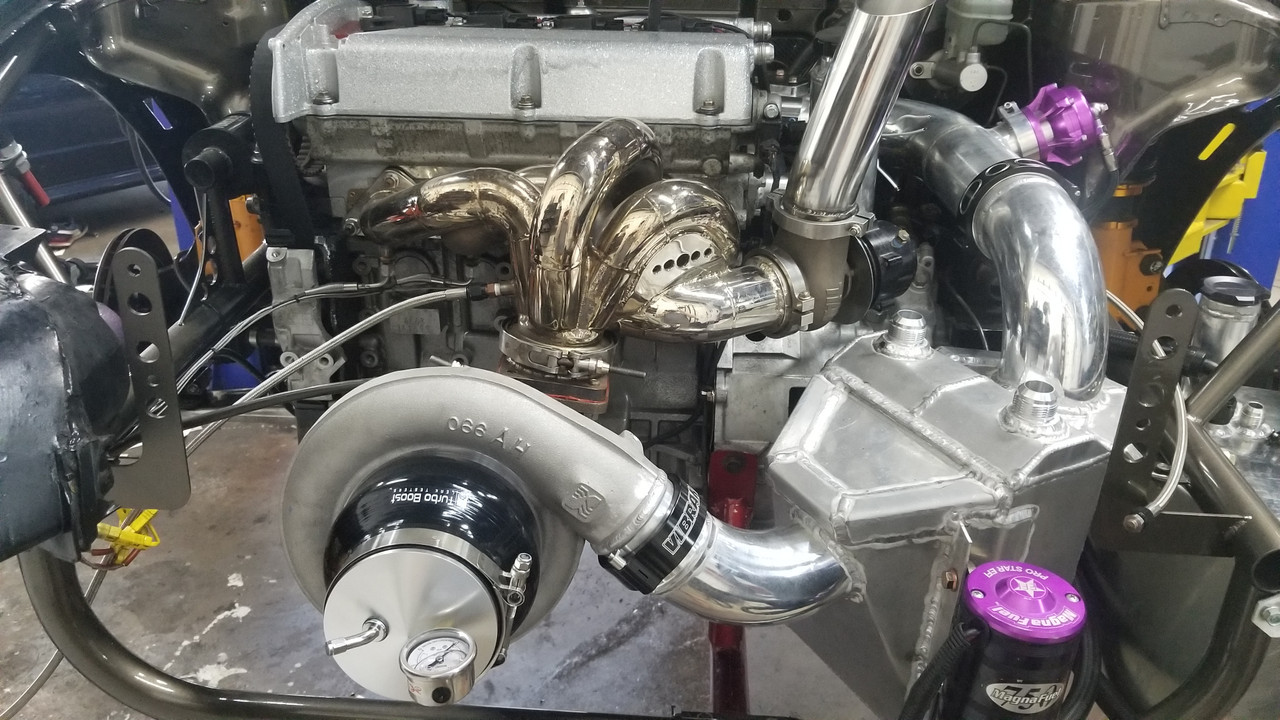

✔️ Installs directly on your turbo inlet

Common Honda setups:

• K-Series turbo builds
• K-swapped Civics / Integras
• B-Series turbo
• D-Series turbo
• Small frame setups

Be sure to measure your turbo inlet for correct size.

Add an Extension Hose Kit:
Will allow control over shop air and manage the pressure entering into your turbo system.   Mandatory for shop environment where the air compressor is inaccessible.  The ball valve lets you turn on and off the pressure into the system - this can be very important for you to check the decay or bleed rate after filling the system with pressure.   The bleed rate lets you know how well the system holds and this can only be done by cutting off the pressure to the tester.

+$39.98 - Add 5ft Extension Hose with Shut-Off Valve

• (1) 5 ft. extension hose with stainless on/off valve for easy control
• All 1/4" NPT Fittings M-Type
• stainless steel ball valve housing

+$47.99 Add 5ft Ext Hose w/150 PSI Regulator & Shut-Off Valve

• (1) 5 ft. Continental extension hose with stainless on/off valve for easy control
• All 1/4" NPT Fittings M-Type
• (1) 150 PSI Air Regulator for added safety and control for shop air - aluminum housing
• Self purging regulator when turning the pressure down
• stainless steel ball valve housing

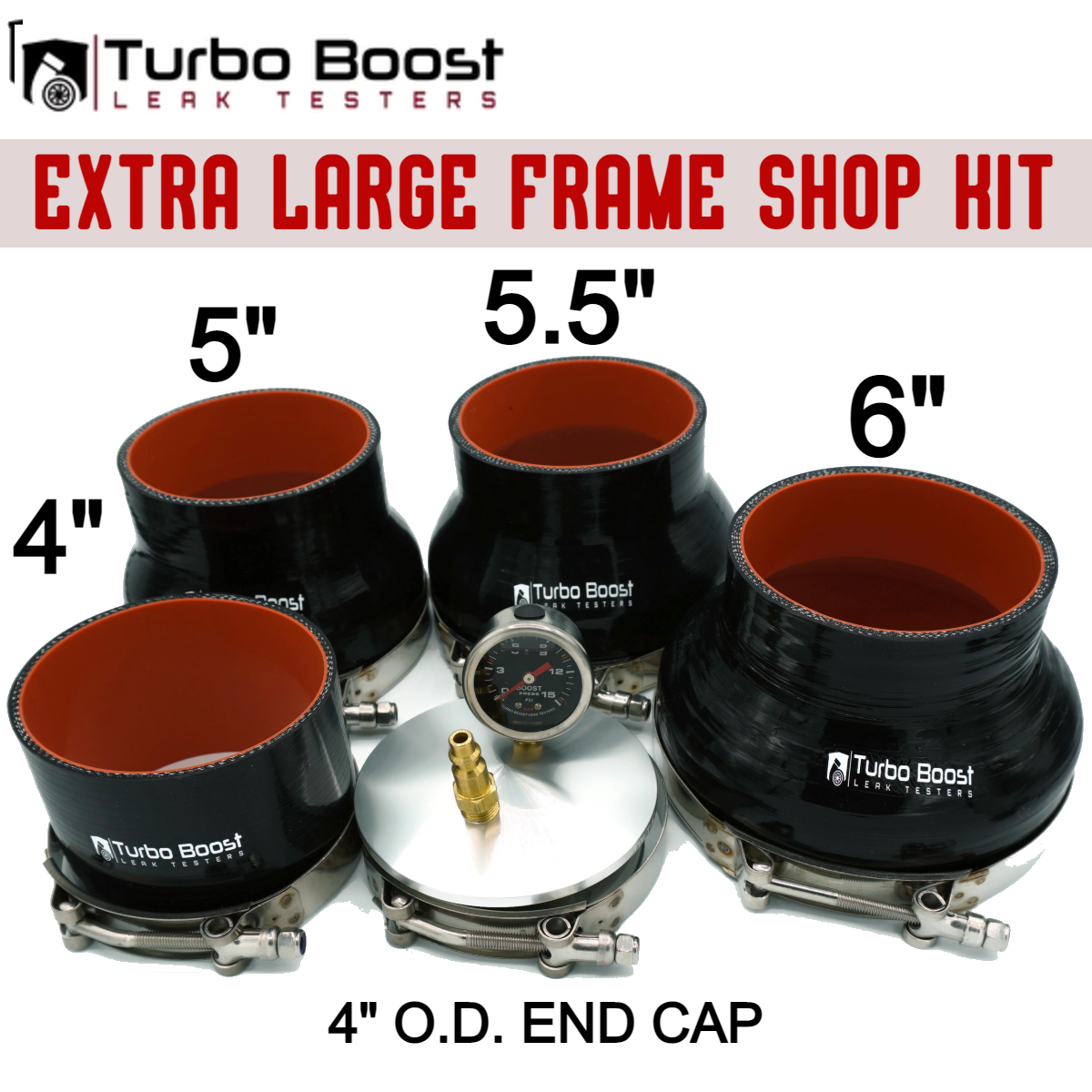

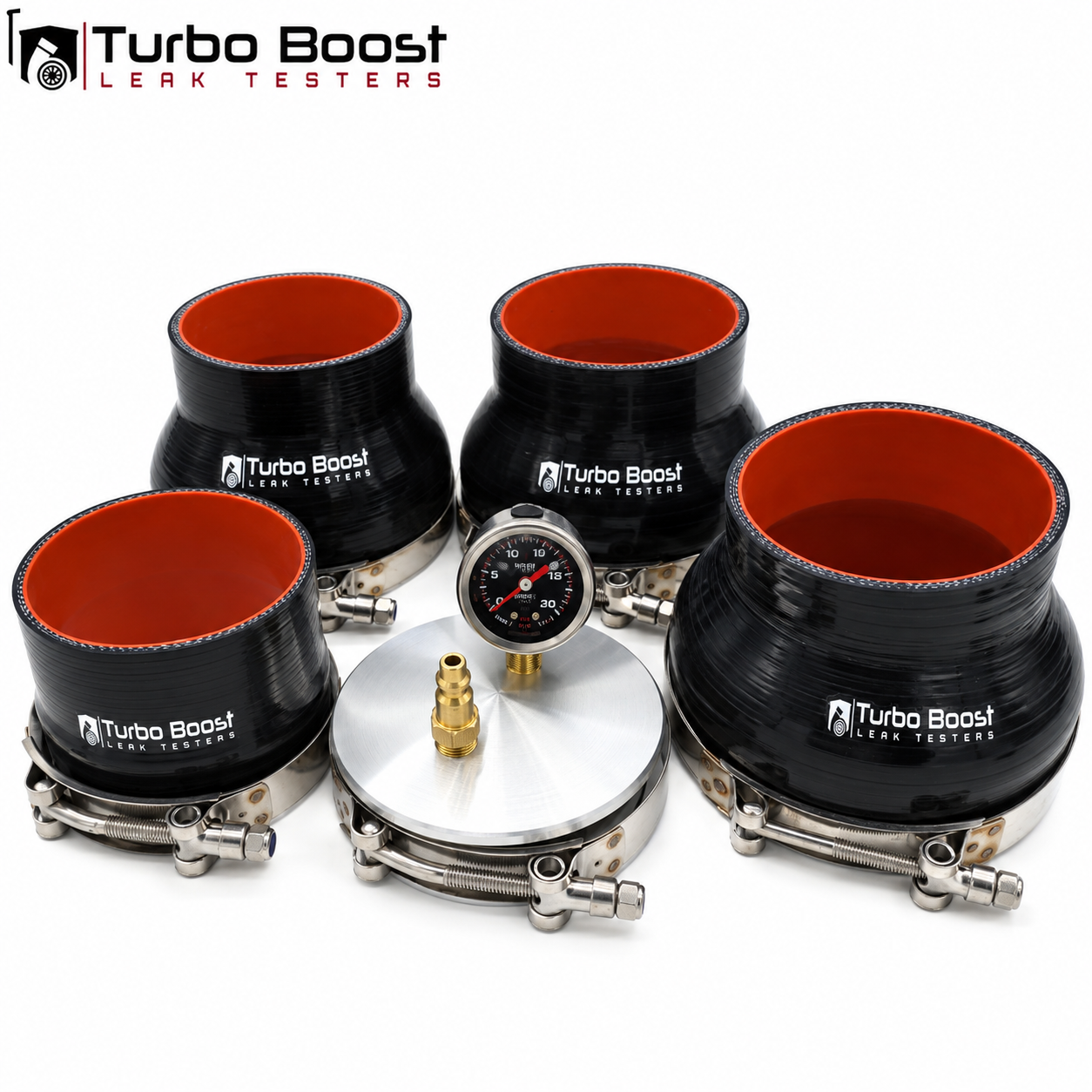

Components Included:

• 4" 6061 Billet Aluminum End Cap anodized for corrosion protection.   This cap has a beaded lip and machined grooves for superior grip and prevent the silicone coupler from slipping.  Tapped with 1/8" NPT for the boost gauge and 1/4" NPT for the air fitting
• M-Type 1/4" NPT Air fitting
• Custom 15 PSI / 1 BAR boost gauge.  Liquid filled, shock proof, stainless steel housing.   (15 PSI gauge for safety vs. 30 PSI that can present a dangerous situation)
• Stainless Steel T-bolt Clamps, (2) 4", 5", 5.5", 6".   Stainless T-bolt & band with 4 spot welds.  Heavy gauge band on the larger sizes.

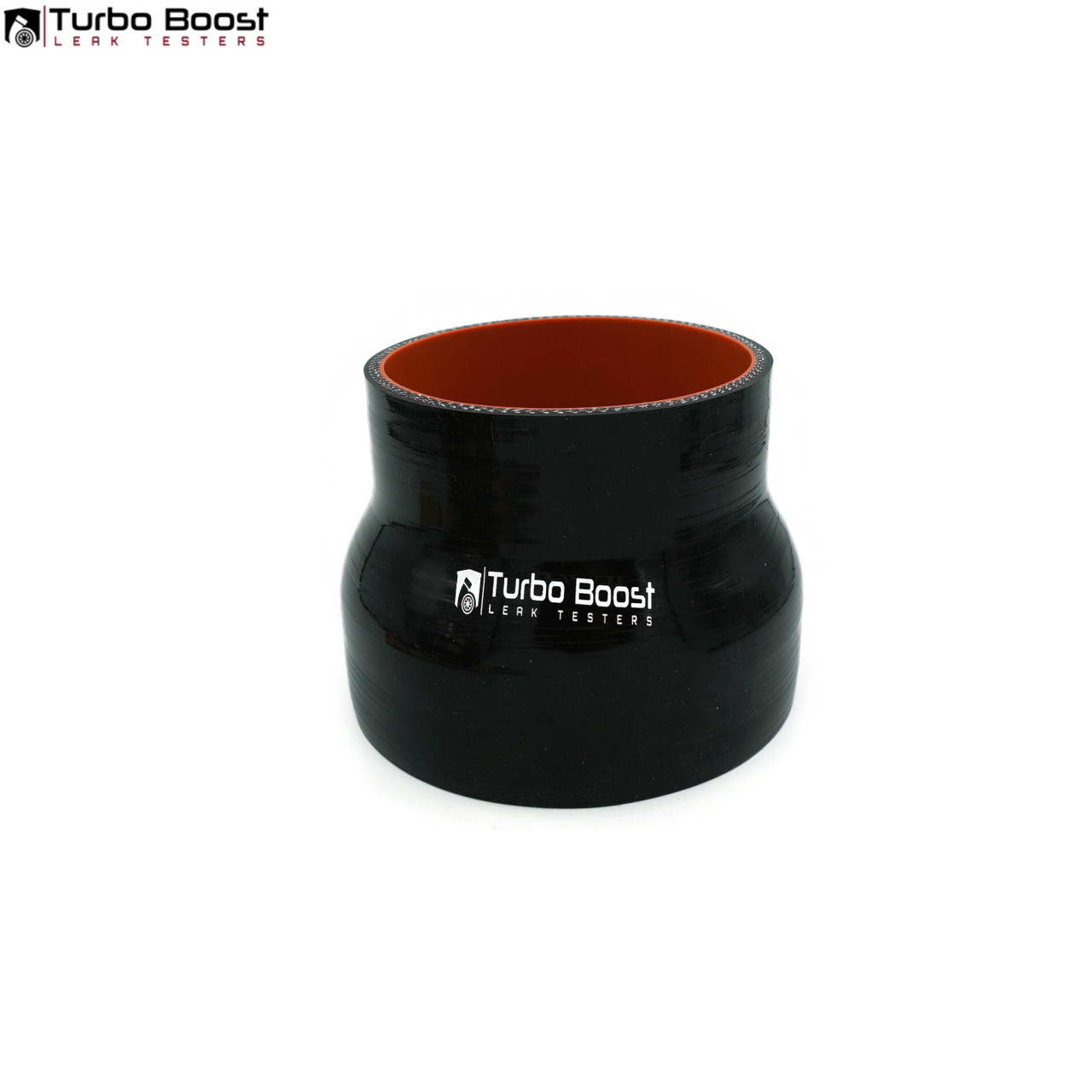

• Silicone Adapters to allow you to test over hard pipes of 4", 5", 5.5", 6".    The 4" billet end cap can also be used inside a 4" hose on your intake.

Lifetime warranty from defects on all the components

If you have ANY questions feel free to reach out and you'll be responded to by a tech specialist
