MINI Cooper S 1.6L N18 Turbo Boost Leak Tester (R55-R61, 2011-2016) - Billet Aluminum

Get your boost back!

MINI Cooper S (R55-R61) 1.6L N18 Turbo Boost Leak Tester

For models 2011-2016

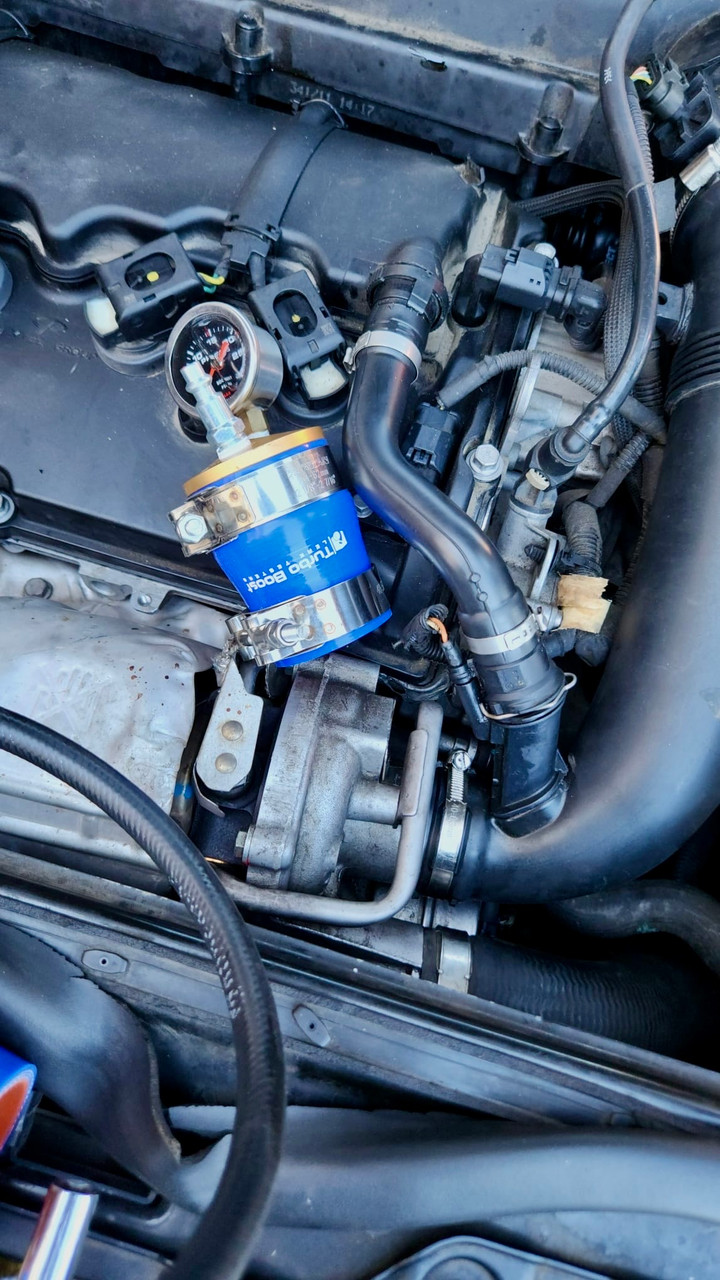

This boost leak tester is designed to fit over the inlet flange of your turbo charger and allows you to pressurize the turbo and charge system with compressed air while the vehicle is off.

This is an important tool that every turbo car owner needs in their arsenal of tools.  It is going to keep the turbo healthy by eliminating leaks in the boost path and not allowing it to over speed compensating for a boost leak.   It is a must if you are tuned and or going to get a custom tune, or any time you are replacing any components in the intake tract such as charge hoses, intercooler, manifold, vacuum lines, injectors…etc.  Also a must if you are going to the track and want the peace of mind that everything is tight and capable of handling sustained boost without blowing any hoses off

Importance of the Gauge?

Not having a gauge readout on a boost leak test is similar to filling air in your car's tire without a gauge.  You just don't know how much air is in the system!

It is very wise to know how much pressure is actually going into the charge system to prevent damage to your engine and to yourself - Example if the compressor is unregulated (using high pressure shop air at 90 PSI) there is a risk that the charge pipes will be over-pressurized and something will give - the boost leak tester could blow off or any component of the engine could.

The gauge on the boost leak tester allows the user to:

1. apply a safe amount of pressure to prevent injury or damage to the charge pipes or engine
2. read how fast the system holds and bleeds air after removing the air source
3. give a good comparison of compressor outlet air Vs. boost test air while pressurizing.  The smaller the difference the lesser the air loss in the system

Design Features:

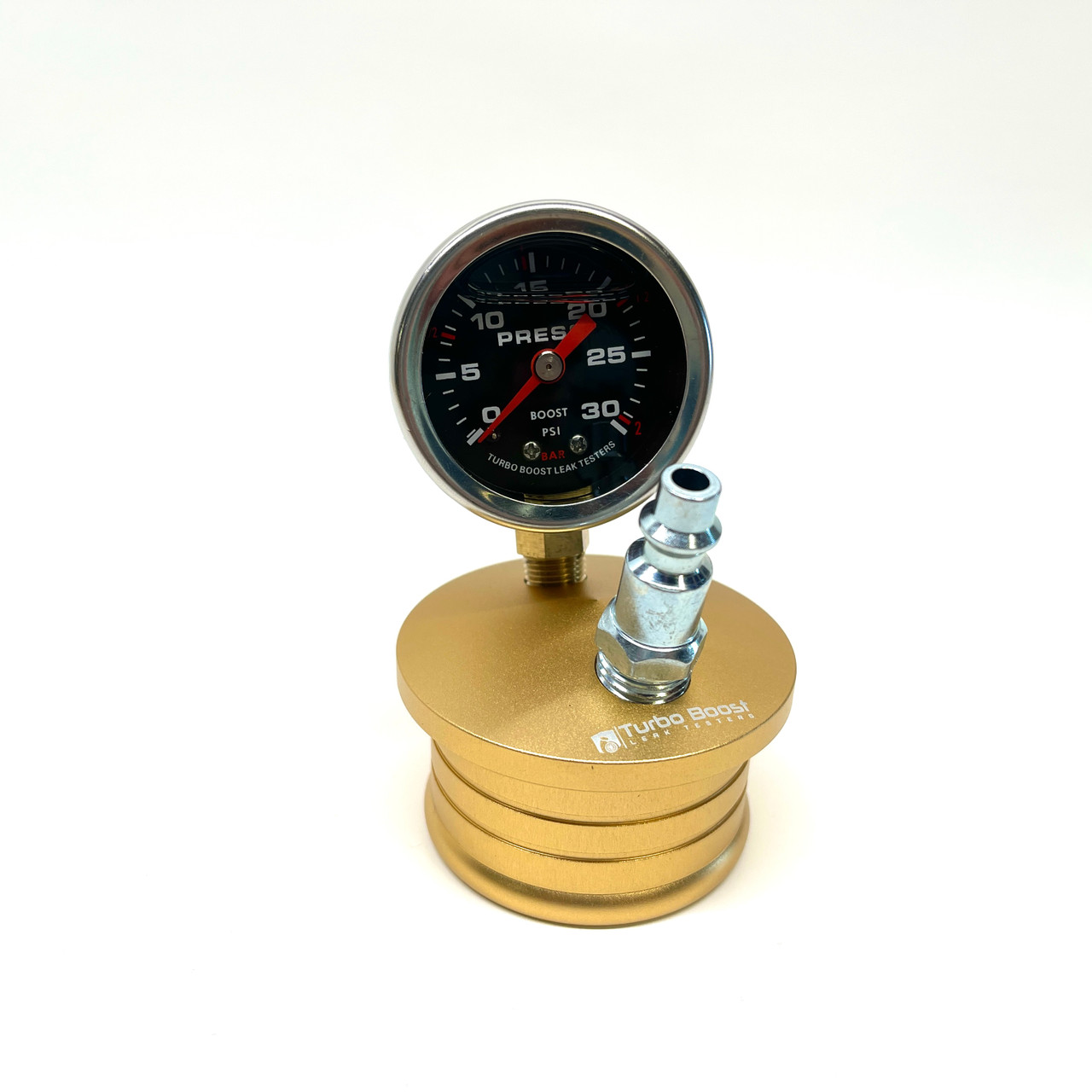

• Billet 6061 Aluminum End Cap with 1/8" NPT threaded gauge port & fitting port
• High quality silicon coupler

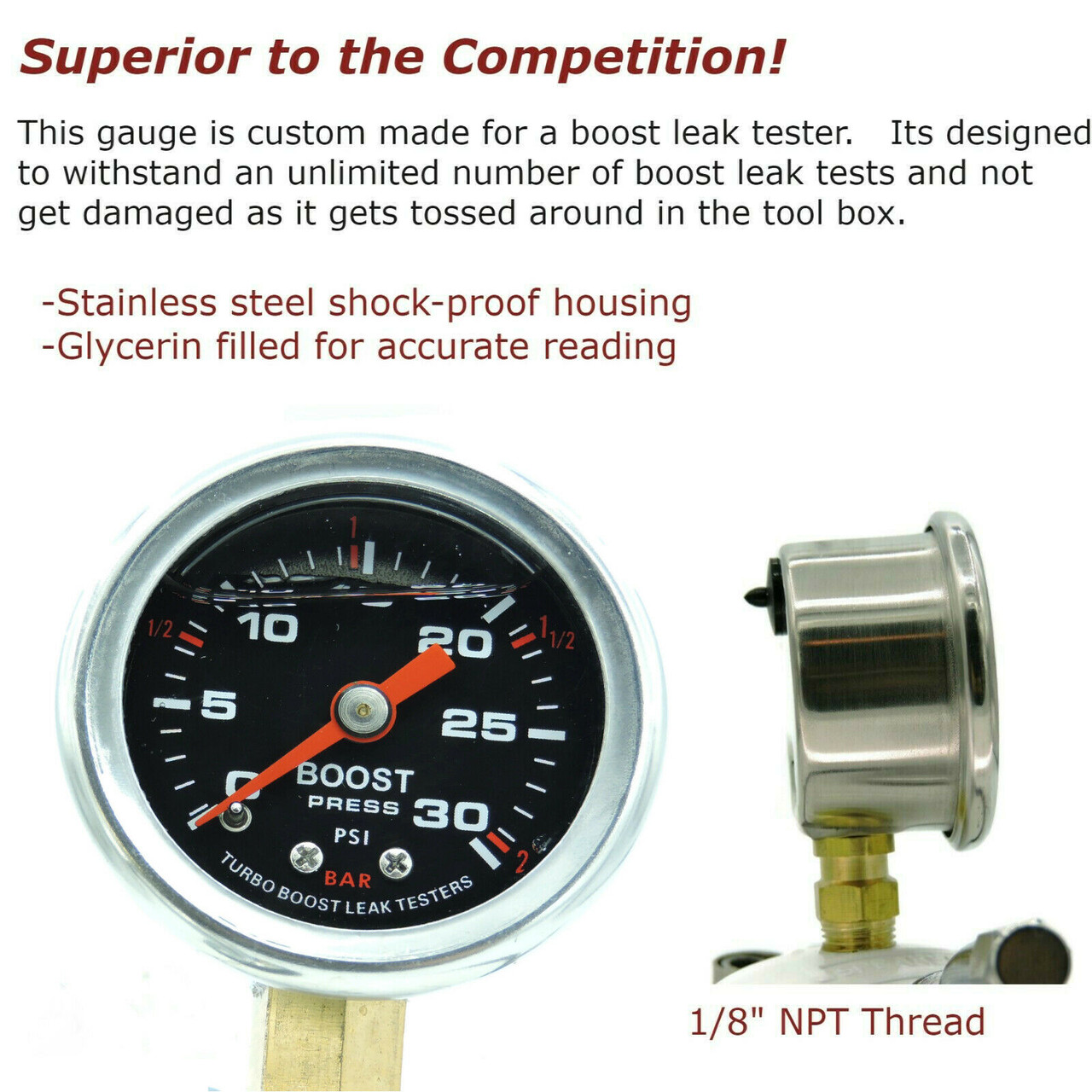

• Custom Stainless Steel 30 PSI / 1Bar Boost Gauge
• 30 PSI range will give you the appropriate reading when testing your charge pipes for low, medium or high boost levels.

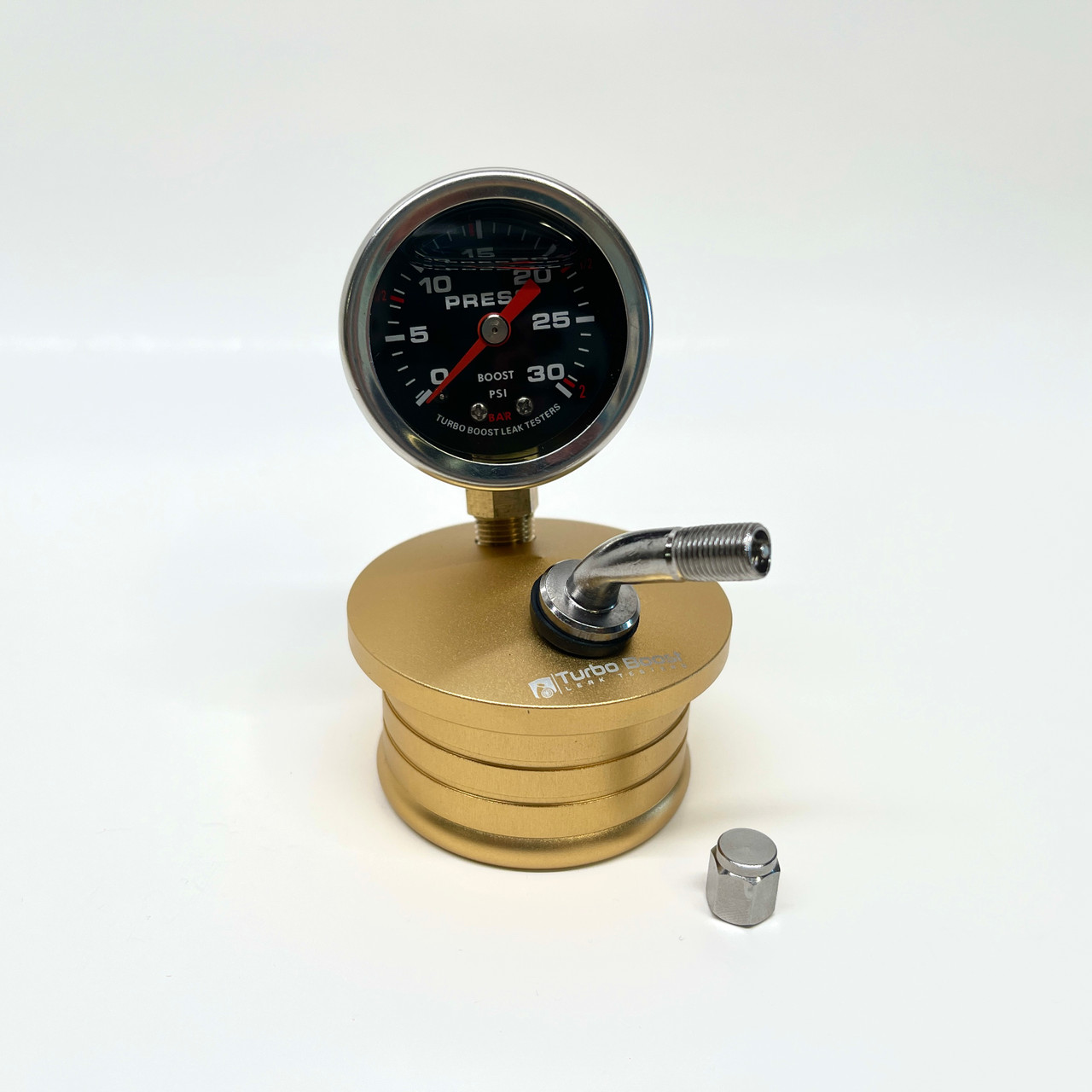

• Universal Tire Schrader Valve (can be removed and tapped for 1/4" NPT thread fitting if desired)
• (2) Stainless Steel T-Bolt Clamps with Teflon lock-nut

Lifetime warranty on gauge, end cap and fitting

Not sure what size you need? See our What Size Do I Need? size chart, or text a photo of your turbo inlet with a tape measure across it to 248-403-8512 and we'll tell you the size.
